ECAN-240 Modbus TCP To 2-port CAN Bus Gateway

ECAN-240  Modbus TCP to 2-port CAN Bus gateway
£27400

(£328.80 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:ECAN-240

Description

The ECAN-240 module is a Modbus TCP to 2-port CAN Bus Gateway.

It provides communications via the Ethernet, based on the Modbus TCP industrial protocol, meaning that the module can be easily integrated with an industrial network. The ECAN-240 module includes two CAN bus interfaces, meaning that more various CAN applications can be supported, such as a CAN bridge or a CAN message router. The CAN message router function means that the ECAN-240 module can be used to connect to four different CAN networks, ensuring they can communicate with each other.

Features

Hardware

  • Supports input voltage 10~30VDC
  • Fully compatible with the ISO 11898-2 standard
  • Includes built-in DIP-switch the can be used to enable/disable the terminal resistor
  • Includes an RJ-45 Ethernet interface with auto-negotiation function
  • Includes two CAN bus interfaces with 9 pin D-sub connector
  • Includes two rotary switches for selection of CAN bus Baud Rate
  • Contains seven LED indicators, one as a power indicator and the others for monitoring CAN bus activity
  • Contains LED indicator on RJ-45 for Ethernet status
  • RoHS Design

Software

  • Provides support for the CAN bus ID filter function
  • Provides support for the CAN bus bridge mode via configuration
  • Provides support for the CAN bus listen only mode via configuration
  • Provides support for a range of CAN bus Baud Rate from 10k bps to 1M bps adjustable via the rotary switch
  • Provides support for the Modbus TCP Client/Server function via configuration
  • Provides support for TCP/UDP pair connection function via configuration
  • Provides support for bootloader mode to enable firmware updates
  • Provides support for web configuration functions

Web Configuration
The configuration for the module parameters or communication commands (in Modbus Client mode only) on the ECAN-240 module can be performed via a standard web browser using the embedded web configuration function. The web configuration functions are divided into several categories and includes basic configuration, CAN Bus configuration, Modbus configuration and pair connection configuration.

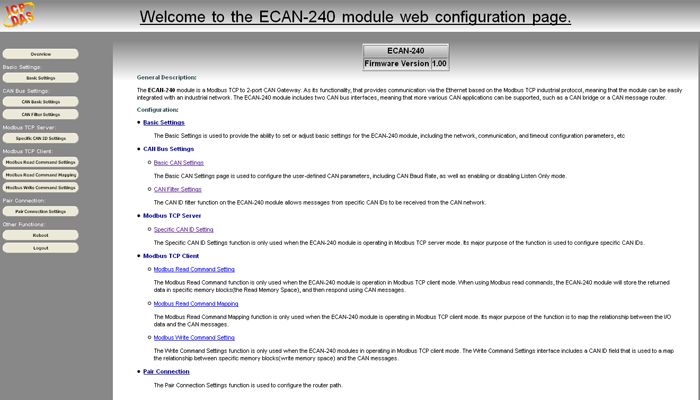

ECAN240 web screen



Specifications

LED Indicators
Status 1 x Power
6 x CAN status
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Protocol Modbus TCP Client/Server, TCP, UDP, HTTP
Socket Connections 8 for TCP, 1 for UDP
CAN
Ports 2
Baud Rate 10 k ~ 1M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120 ohm terminal resistor, enabled/disabled via DIP-Switch
Specification ISO 11898-2 CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2 W
Mechanical
Casing Metal
Dimensions (mm) 106.8 x 146.8 x 25.9 (W x L x H)
Installation DIN-Rail
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Applications

Modbus TCP Server:

The Modbus TCP Server function is used to implement communications between a CAN device and a Modbus TCP Client. When the ECAN-240 module is acting as a Modbus TCP Server, the Modbus TCP Client needs to use Modbus commands based on the CAN format in order to access the ECAN-240 module. The ECAN-240 module will then translate these commands into CAN format messages and send them to the CAN networks. Similarly, when a CAN format message is received from the CAN network, the ECAN-240 translates the message into Modbus format, which can then be accessed using a Modbus command.

Modbus TCP Client:

The Modbus TCP Client function is used to implement communications between a CAN Bus and a Modbus TCP Server. When the ECAN-240 module is acting as a Modbus TCP Client, it can access the Modbus TCP Server via the command configuration. When the ECAN-240 module receives I/O data, it will forward it to the remote CAN devices for analysis, control, or other operations. Once configured, the ECAN-240 module is also able to access the Modbus TCP Server via a CAN message.

Pair Connection:

The Pair Connection function is used to implement communication between two ends of CAN network. CAN Network #1 can communicate with CAN Network #3 or CAN Network #4 using pair connection configuration. Similarly, CAN Network #2 can also communicate with CAN Network #3 or CAN Network #4 in the same manner. The pair connection function on the ECAN-240 module is implemented via either the TCP or the UDP protocol.

Transparent:

The Transparent option is to see as a half-pair connections. The TCP/UDP packet is in CAN format and contains the CAN ID. This is useful because it allows custom TCP/UDP programs to be developed that can directly access the ECAN-240 module for specific applications.

Description

The ECAN-240 module is a Modbus TCP to 2-port CAN Bus Gateway.

It provides communications via the Ethernet, based on the Modbus TCP industrial protocol, meaning that the module can be easily integrated with an industrial network. The ECAN-240 module includes two CAN bus interfaces, meaning that more various CAN applications can be supported, such as a CAN bridge or a CAN message router. The CAN message router function means that the ECAN-240 module can be used to connect to four different CAN networks, ensuring they can communicate with each other.

Features

Hardware

Software

Web Configuration
The configuration for the module parameters or communication commands (in Modbus Client mode only) on the ECAN-240 module can be performed via a standard web browser using the embedded web configuration function. The web configuration functions are divided into several categories and includes basic configuration, CAN Bus configuration, Modbus configuration and pair connection configuration.

ECAN240 web screen



Specifications

LED Indicators
Status 1 x Power
6 x CAN status
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Protocol Modbus TCP Client/Server, TCP, UDP, HTTP
Socket Connections 8 for TCP, 1 for UDP
CAN
Ports 2
Baud Rate 10 k ~ 1M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120 ohm terminal resistor, enabled/disabled via DIP-Switch
Specification ISO 11898-2 CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2 W
Mechanical
Casing Metal
Dimensions (mm) 106.8 x 146.8 x 25.9 (W x L x H)
Installation DIN-Rail
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

ECAN-240  ModbusTCP to dual CAN module datasheet

Applications

Modbus TCP Server:

The Modbus TCP Server function is used to implement communications between a CAN device and a Modbus TCP Client. When the ECAN-240 module is acting as a Modbus TCP Server, the Modbus TCP Client needs to use Modbus commands based on the CAN format in order to access the ECAN-240 module. The ECAN-240 module will then translate these commands into CAN format messages and send them to the CAN networks. Similarly, when a CAN format message is received from the CAN network, the ECAN-240 translates the message into Modbus format, which can then be accessed using a Modbus command.

Modbus TCP Client:

The Modbus TCP Client function is used to implement communications between a CAN Bus and a Modbus TCP Server. When the ECAN-240 module is acting as a Modbus TCP Client, it can access the Modbus TCP Server via the command configuration. When the ECAN-240 module receives I/O data, it will forward it to the remote CAN devices for analysis, control, or other operations. Once configured, the ECAN-240 module is also able to access the Modbus TCP Server via a CAN message.

Pair Connection:

The Pair Connection function is used to implement communication between two ends of CAN network. CAN Network #1 can communicate with CAN Network #3 or CAN Network #4 using pair connection configuration. Similarly, CAN Network #2 can also communicate with CAN Network #3 or CAN Network #4 in the same manner. The pair connection function on the ECAN-240 module is implemented via either the TCP or the UDP protocol.

Transparent:

The Transparent option is to see as a half-pair connections. The TCP/UDP packet is in CAN format and contains the CAN ID. This is useful because it allows custom TCP/UDP programs to be developed that can directly access the ECAN-240 module for specific applications.
