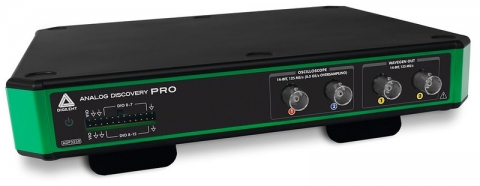

ADP3250-BNC Analog Discovery Pro: Portable High Resolution Mixed Signal Oscilloscopes

ADP3250-BNC  Analog Discovery Pro: Portable High Resolution Mixed Signal Oscilloscopes
£90900

(£1,090.80 incl VAT)
FREE delivery to UK on orders over £500

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:ADP3250-BNC
Delivery to UK Only

Description

ADP 3450 and ADP3250, in the line of Analog Discovery Pro devices, offers 4 channels (ADP3450) /

2 channels (ADP3250) analog input with 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly

digital world, 16 dedicated digital channels make the ADP3450 a true mixed signal oscilloscope. With the included digital

power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers Analog

Discovery Pro comes with 12 instruments ready to analyze mixed signal systems through our free software, WaveForms.



  • Oscilloscope
  • Waveform Generator
  • Power Supplies
  • Voltmeter
  • Data Logger
  • Logic Analyzer
  • Pattern Generator
  • Static I/O
  • Spectrum Analyzer
  • Network Analyzer
  • Impedance Analyzer
  • Protocol Analyzer



Test your systems in Linux environment

Analog Discovery Pro introduces Linux Mode. Linux Mode provides an on-device terminal-based operating system that, when combined with WaveForms SDK, is a flexible starting point for all kinds of custom tests and applications. Running embedded

on the device itself or via WaveForms, engineers and measurement enthusiasts alike can take advantage of data streaming via

ethernet, and the on-device storage to capture buffers of millions of samples.



Advanced Trigger Modes

Analog Discovery Pro features a variety of advanced triggering options. Instruments within WaveForms can be

cross-triggered for example, activating an oscilloscope capture based on a received and decoded digital protocol. And

external signals can trigger events using the two dedicated external trigger inputs on the back of the device.

WaveForms provides these features configurable in the instruments themselves, or for more control or automation in

one of the available scripting interfaces.



WaveForms Software Applications

WaveForms is the free software application for the ADP3450 and ADP3250 and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The device communicates with WaveForms via a USB or ethernet connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.  WaveForms SDK is a set of software libraries and examples that can be used to develop custom applications that can control Digilent Test and Measurement devices. Supported languages include C, C++, C#, Visual Basic, and Python. Third-party toolkits are available for LabVIEW and MATLAB.



Features

Analog Inputs:

  • Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
  • ADP3450: Four analog input channels accessible via front panel BNC connectors
  • ADP3250: Two analog input channels accessible via front panel BNC connectors
  • Channel type: single ended
  • Analog bandwidth: 55+ MHz @ 3 dB
  • Noise limiting hardware bandwidth filter: 20 MHz
    • Can be enabled or disabled
  • 14-bit resolution (16-bit resolution with oversampling)
  • Input range ±25 V (±50 V diff)
  • Input protected to ±50 V
  • Max sampling rate:
  • 0.5 GS/s (with oversampling enabled)
  • 100 MS/s default
  • AC or DC coupling
  • 128 MS total in record mode
  • 32 k + samples per channel in repeated/shift/screen modes
  • Input buffer Size
  • Channel type: single-ended

Analog Outputs:

  • Used in the Waveform Generator, Impedance Analyzer, and Network Analyzer
  • Two arbitrary waveform generator channels, accessible via front panel BNC connectors
  • 14-bit Resolution
  • AC amplitude (max): ±5 V
  • Analog bandwidth: 15 MHz @ 3 dB
  • Maximum Sampling Rate: 125 MS/s

Digital Inputs and Outputs:

  • Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
  • Channels: 16
  • Input logic standard: LVCMOS (adjustable 1.2 V to 3.3 V, 5 V tolerant)
  • Output logic standard: LVCMOS (adjustable 1.2 V to 3.3 V, 8 mA)
  • Max sampling rate: 125 MS/s
  • Logic analyzer buffer memory:
    • 64 MS total in Record Mode
    • 32 k+ per channel in Repeated/Shift/Screen modes

Advanced Triggering:

  • Trigger sources: oscilloscope analog channels, function generator start, digital I/O lines, external triggers, manual trigger button
  • Trigger Modes
    • None, auto, manual (forced trigger), single
  • Analog Trigger
  • Edge, pulse, transition, condition, level, hysteresis, hold-off
  • Edge, level, pattern, glitch, protocol
  • Digital Trigger

Connectivity:

  • Device to computer: USB or Ethernet connection (in Linux or Standard Modes)
  • 4 High-speed USB 2.0 ports for peripheral connection (enabled in Linux mode)
    • Enabled for set and tested WiFi dongles (in Linux Mode)

Digital Power Supply:

  • One Power supply with two access points
  • Voltage Range: 1.2 V to 3.3 V
  • Output Current: 300 mA

Other:

  • Auxiliary Powered
  • Dimensions: 23.40 cm x 19.40 cm x 3.81 cm (9.2 in x 7.6 in x 1.5 in)
  • Weight: 450 g

Specifications

ADP3250 with BNC Probes Includes:

  • 1 ADP3250
  • 1 USB A to B cable
  • 1 19V 3.4A power supply cable
  • 1 US IEC cable
  • 1 EU IEC cable
  • 1 2x12 MTE cable
  • 4 BNC to mini-grabber cables
  • 2 P2150 oscilloscope probes

Description

ADP 3450 and ADP3250, in the line of Analog Discovery Pro devices, offers 4 channels (ADP3450) /

2 channels (ADP3250) analog input with 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly

digital world, 16 dedicated digital channels make the ADP3450 a true mixed signal oscilloscope. With the included digital

power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers Analog

Discovery Pro comes with 12 instruments ready to analyze mixed signal systems through our free software, WaveForms.



  • Oscilloscope
  • Waveform Generator
  • Power Supplies
  • Voltmeter
  • Data Logger
  • Logic Analyzer
  • Pattern Generator
  • Static I/O
  • Spectrum Analyzer
  • Network Analyzer
  • Impedance Analyzer
  • Protocol Analyzer



Test your systems in Linux environment

Analog Discovery Pro introduces Linux Mode. Linux Mode provides an on-device terminal-based operating system that, when combined with WaveForms SDK, is a flexible starting point for all kinds of custom tests and applications. Running embedded

on the device itself or via WaveForms, engineers and measurement enthusiasts alike can take advantage of data streaming via

ethernet, and the on-device storage to capture buffers of millions of samples.



Advanced Trigger Modes

Analog Discovery Pro features a variety of advanced triggering options. Instruments within WaveForms can be

cross-triggered for example, activating an oscilloscope capture based on a received and decoded digital protocol. And

external signals can trigger events using the two dedicated external trigger inputs on the back of the device.

WaveForms provides these features configurable in the instruments themselves, or for more control or automation in

one of the available scripting interfaces.



WaveForms Software Applications

WaveForms is the free software application for the ADP3450 and ADP3250 and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The device communicates with WaveForms via a USB or ethernet connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.  WaveForms SDK is a set of software libraries and examples that can be used to develop custom applications that can control Digilent Test and Measurement devices. Supported languages include C, C++, C#, Visual Basic, and Python. Third-party toolkits are available for LabVIEW and MATLAB.



Features

Analog Inputs:

Analog Outputs:

Digital Inputs and Outputs:

Advanced Triggering:

Connectivity:

Digital Power Supply:

Other:

Specifications

ADP3250 with BNC Probes Includes:
