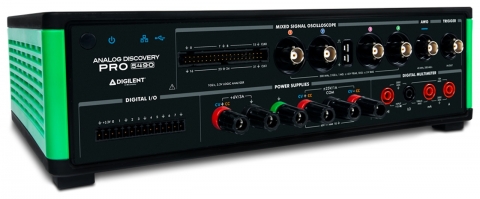

The Analog Discovery Pro 5000 Series devices, the ADP5250, ADP5470, and ADP5490, are Digilent’s most ambitious mixed signal oscilloscopes to date, bringing higher sample rates, wider bandwidth, and more power to your benchtop.
Classifying the three ADP5000 devices as ‘just’ mixed signal oscilloscopes would be doing them a disservice. Each product sports an integrated CAT II Digital Multimeter, three programmable power supplies, a dedicated trigger line, and arbitrary waveform generator to complement the mixed signal oscilloscope. With 34 digital inputs operating at 1 GS/s working in tandem with the analog system, the rugged 5000 Series devices provide a range of bandwidths and sample rates for analog inputs to fit your needs – from a base of 100 MHz at 1 GS/s, to 350 MHz at 1.5 GS/s, all the way up to 500 MHz at 2 GS/s.
Driven by Digilent’s free WaveForms software and with everything included with a one-time purchase of the hardware, the Analog Discovery Pro 5000 Series is more than just a tool – it’s analysis uncompromised.
Analog Inputs
Analog Output
Logic Analyzer
· Three programmable power supplies (0 V to 6 V, 0 V to 25 V, 0 V to -25 V)
· Up to 3 A output on the 6 V rail, up to 1 A each on the ±25 V rails
· Integrated hardware readback of voltage and current output for each rail
Additional Features
· Integrated CAT II Digital Multimeter
· Triggering and cross triggering between instruments
Includes
For full specifications, please see datasheet below.
