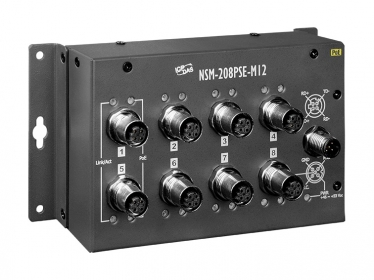

The NSM-208PSE-M12 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The NSM-208PSE-M12 PoE switch provides 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port. The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network.
| LED Indicators | |
|---|---|
| Status | PWR, Link/Act, Power Device is detected |
| Ethernet | |
|---|---|
| Ports | 8 x M12 connector, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Connector | Female 4-Pin shielded M12 D-coding connector |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 W per port |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) for RJ-45 |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +46 ~ +48 VDC depending on power input |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +46 VDC ~ +53 VDC |
| Consumption |
0.12 A @ 48 VDC without PD loading 3.0 A @ 48 VDC with PD full loading |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 190 x 100 x 56 (W x L x H) |
| Installation | Wall Mounting |
| Ingress Protection Rating | IP40 |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 95% RH, non-condensing |
