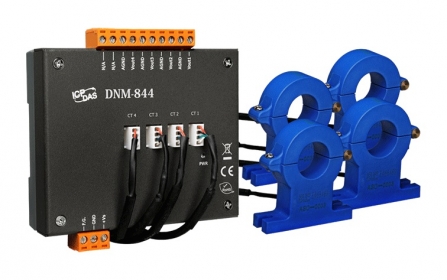

DNM-844-200A 4 Channel 200A Current Transformers (AC/DC)

DNM-844-200A   4 Channel 200A Current Transformers (AC/DC)
£33800

(£405.60 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:DNM-844-200A

Description

The DNM-844 is 4-channel current transformer. The maximum current input range is from ±2000 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.

Features

  • 4-Channel High Current Input Measurement
  • Linear Attenuation Ratio
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • 3000 VDC Intra-module Isolationn
  • RoHS Compliance
  • Easy wire connection
  • Operating Temperature: -25 ~ +75 °C

Specifications

EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels 4
Type AC/DC Current
Range High Current: ±200 A
Accuracy 1% of FSR
Bandwidth 0 ~ 50 KHz
Intra-module Isolation 3000 VDC
Isolation 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels 4
Type AC/DC Voltage
Range High Voltage: ±10 VDC or 10 VAC
Accuracy 1% of FSR
Isolation 2.5 KV @ 50 (60) HZ/1 min
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.3 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 104 x 28 (W x L x D)
Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Description

The DNM-844 is 4-channel current transformer. The maximum current input range is from ±2000 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.

Features

Specifications

EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels 4
Type AC/DC Current
Range High Current: ±200 A
Accuracy 1% of FSR
Bandwidth 0 ~ 50 KHz
Intra-module Isolation 3000 VDC
Isolation 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels 4
Type AC/DC Voltage
Range High Voltage: ±10 VDC or 10 VAC
Accuracy 1% of FSR
Isolation 2.5 KV @ 50 (60) HZ/1 min
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.3 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 104 x 28 (W x L x D)
Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

DNM-844 series 4-channel Current Transformer for AC or DC Datasheet
