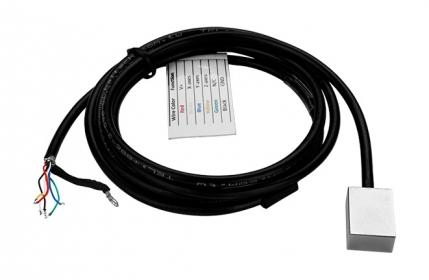

iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.
| Vibration Measurement | |
|---|---|
| Axes | 3 |
| Sensor Type | MEMS |
| Amplitude Range | ±18g |
| Frequency Range | 10Hz~1KHz |
| Sensitivity | 400mV/g per axis |
| Bais Voltage | 10±0.5VDC |
| Power | |
|---|---|
| Input Range | 22~26VDC,3mA |
| Mechanical | |
|---|---|
| Dimensions (mm) | (15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H) |
| Cable | |
|---|---|
| Length | 1.5m |
iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.
| Vibration Measurement | |
|---|---|
| Axes | 3 |
| Sensor Type | MEMS |
| Amplitude Range | ±18g |
| Frequency Range | 10Hz~1KHz |
| Sensitivity | 400mV/g per axis |
| Bais Voltage | 10±0.5VDC |
| Power | |
|---|---|
| Input Range | 22~26VDC,3mA |
| Mechanical | |
|---|---|
| Dimensions (mm) | (15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H) |
| Cable | |
|---|---|
| Length | 1.5m |
