Analog Discovery 3 USB Oscilloscope Student Bundle

Description

Start verifying and testing projects with the Analog Discovery 3 Pro Bundle

Looking for a high-quality digital oscilloscope at an affordable price? Look no further than the Analog Discovery 3 Pro Bundle from Digilent! This Analog Discovery kit is the perfect solution for engineers, students, and hobbyists who need a portable digital oscilloscope that can be used for a wide range of projects. This comprehensive bundle includes the new Analog Discovery 3, a digital oscilloscope for PC, along with carefully curated accessories and components to help you tackle any electronics project. As a digital storage oscilloscope, the Analog Discovery 3 provides high-quality reliable measurements and analysis with powerful yet easy-to-use features. The Digilent Analog Discovery Kit is a versatile device that includes a range of test and measurement tools, including a two-channel oscilloscope, waveform generator, power supply, and more.

Analog Discovery 3 is Digilent’s latest multi-function test and measurement device, also known as the AD3, is a digital oscilloscope, logic analyzer, waveform generator, pattern generator, and much more. Using the flexible WaveForms software (supported by Windows, Mac, and Linux), the Analog Discovery 3 can be used in the lab, in the field, or even at home - you're no longer tied down to a traditional benchtop and stacks of expensive test instruments.

NOTE: Educational Discounts available, please call for details.

Features

• Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with optional BNC Adapter
• User-configurable input filters and lock-in amplifier
• FFT, Spectrogram, Eye Diagram, XY Plot views, and more

Arbitrary Waveform Generator:

• Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
• Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more

Logic Analyzer and Pattern Generator:

• 16 digital I/O channels at up to 125 MS/s per channel
• Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
• SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more

Programmable Power Supplies:

• 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
• Up to 800 mA per channel when used with auxiliary power source

Additional Features:

      Additional software instruments including:

• Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
• Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
• Data logging, Voltmeter, in-app scripting

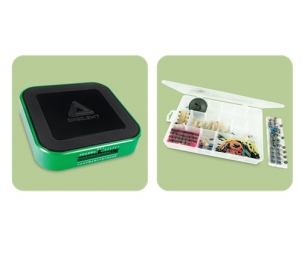

Includes:

• Analog Discovery 3 and the following:
  • One plastic project box
  • One USB-C® to USB-C programming cable
  • One 2x15 flywire signal cable assembly
  • 5-pack of 6-pin male headers
  • 30-pin flywire labels
  • 1 Year subscription to Multisim Live and 30-day Trial of EveryMeasure with 5GB and 5 Users
    (requires Analog Discovery 3 registration)
• Analog Parts Kit

Specifications

Technical

Analog Discovery 3 Datasheet

Accessories

The Analog Discovery 3 has access to all of the adapters and accessories from its previous version. These accessories, like the Transistor Tester, Impedance Analyzer, and Breadboard Adapter, are available optionally.

Software

WaveForms is the free software application for the Analog Discovery 3 and enables use of the available analog and digital instruments. The friendly user interface that has the feel of traditional benchtop software. The hardware device communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Windows, Mac, and Linux compatible.

For even more customization potential, the WaveForms Software Development Kit (SDK) can be used to create custom applications and scripts in Python, C and additional languages. The Analog Discovery 3 is also compatible with LabVIEW and the Digilent Toolbox for compatibility with MathWorks' MATLAB Data Acquistion Toolbox.


Also included with Analog Discovery 3 is a free 30-day trial of EveryMeasure, our new data storage and visualization platform, plus a one-year subscription to Multisim Live Premium, the online circuit simulator that lets users create, learn, and share circuits and electronics online.

The following instruments are available in the WaveForms application for the Analog Discovery 3:

• Oscilloscope
• Waveform Generator
• Power Supplies
• Voltmeter
• Data Logger
• Logic Analyzer
• Pattern Generator
• Static I/O
• Spectrum Analyzer
• Network Analyzer
• Impedance Analyzer
• Curve Tracer
• Protocol Analyzer

Expanded WaveForms Features

The Analog Discovery 3 boasts a larger-than-ever buffer size, allowing more data to be sent through the waveform generator and received through the mixed channel (analog and digital) oscilloscope. It also has an increased sampling rate of up to 125 MS/s on all channels and a more potent power supply (~800 mA). The larger buffers also offer increased performance with higher resolution AM/FM bands, along with AWG phase modulation, summation, and internal loopback.

1 Year Subscription to Multisim Live

Every purchase of Analog Discovery 3 comes bundled with a complimentary one-year subscription to Multisim Live Premium. Experience the best of both worlds: the power and portability of the AD3, paired with the advanced circuit design and simulation capabilities of Multisim Live Premium.

• Intuitive User Interface: Multisim Live Premium offers a user-friendly and intuitive interface, making it easy to design and simulate circuits.
• Expanded Component Library: From resistors and capacitors to transistors and integrated circuits, you'll have access to a comprehensive collection of components to design and simulate complex circuits.
• Advanced Simulation Capabilities: Take advantage of advanced simulation capabilities to analyze circuit behavior. Perform Monte Carlo analysis to evaluate component variations, explore parameter sweeping to study circuit responses under different conditions, and simulate complex mixed-signal circuits with ease.
• Collaboration and Sharing: Experience seamless collaboration on circuit designs. Work together with colleagues, classmates, or project partners in real-time, making design iterations, sharing insights, and collaborating on projects effortlessly. It's a great tool for team-based projects and fostering a collaborative learning environment.

30-day Trial of EveryMeasure with 5GB and 5 Users

EveryMeasure is an upcoming cloud solution that makes it easy for anyone to tap into the power of the cloud for test and measurement data. Your purchase of an AD3 unlocks a 30 day trial with 5gb of storage and 5 users when it launches. With EveryMeasure you can do things like:

• Convert test and measurement data into Streams; a time-series database file optimized for lightning fast querying, and exploration
• No-code IoT logging with automated rules and alerts
• Downsample data and create visualizations without having to write any code
• Collaborate from anywhere with built in text and graphical annotations and a familiar shared file system.
