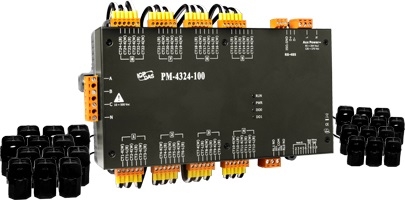

PM-4324-160P Modbus RTU, Multi-Channel Power Meter (100 A)

PM-4324-160P  Modbus RTU, Multi-Channel Power Meter (100 A)
£1,76400

(£2,116.80 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:PM-4324-160P

Description

The PM-4324 Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits.

The PM-4324 can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 perfect for multitenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.

Features

  • 8 three phase circuits or 24 single phase circuits
  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 400 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Split Core CT for Easy Installation
  • W Accuracy Better than 0.5% (PF=1)
  • Supports RS-485, (Ethernet or CAN bus Interface Coming soon)
  • Supports Modbus RTU, Modbus TCP Protocol
  • Supports 2 Power Relay Output (Form A)
  • Total Harmonic Distortion (THD)

Specifications

Models PM-4324 PM-4324-MTCP ~ Available soon ~
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Measurement Voltage 10 ~ 500 V
Measurement Current CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A)
Measurement Frequency 50/60 Hz
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
Communication
RS-485 Protoco Modbus-RTU -
Baud rate 9600,19200 (default), 38400, 115200;
DIP Switch Selectable
-
Data format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 -
Isolation 3000 VDC -
Ethernet Protocol - Modbus TCP
Alarm Output
Power Relay Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC
Power
Input Range +85 ~ +264 VAC
Power Consumption 6 W
Mechanical
Casing Plastic
Dimensions (W x L x H) 237 mm x 52 mm x 134 mm
Module Installation DIN-Rail Mounting
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -25 ~ +80 °C
Ambient Relative Humidity 10% ~ 90% RH, Non-condensing




Description

The PM-4324 Multi-Channel Power Meter monitors up to 8 three phase circuits or 24 single phase circuits, or any combination of single or three phase circuits.

The PM-4324 can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 perfect for multitenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.

Features

Specifications

Models PM-4324 PM-4324-MTCP ~ Available soon ~
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Measurement Voltage 10 ~ 500 V
Measurement Current CTØ10 mm (60 A); CTØ16 mm (100 A); CTØ24 mm (200 A); CTØ36 mm (300 A); CTØ36 mm (400 A)
Measurement Frequency 50/60 Hz
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate 1 Second
Communication
RS-485 Protoco Modbus-RTU -
Baud rate 9600,19200 (default), 38400, 115200;
DIP Switch Selectable
-
Data format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 -
Isolation 3000 VDC -
Ethernet Protocol - Modbus TCP
Alarm Output
Power Relay Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC
Power
Input Range +85 ~ +264 VAC
Power Consumption 6 W
Mechanical
Casing Plastic
Dimensions (W x L x H) 237 mm x 52 mm x 134 mm
Module Installation DIN-Rail Mounting
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -25 ~ +80 °C
Ambient Relative Humidity 10% ~ 90% RH, Non-condensing




Technical

PM-4324 Datasheet
