RM1-AB 0-10V To Relay Output, Adjustable Trippoint Module

Description

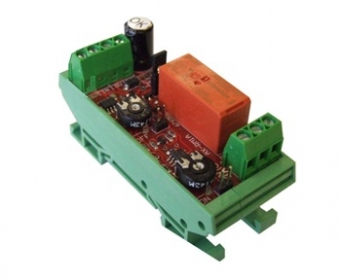

The RM1-AB module provides a SPCO relay output from a 0 to 10 volt input signal. The relay switch on and switch off points are adjustable using the on-board presets. The RM1-AB also provides a buffered slave 0 to 10 volt output signal to drive other modules etc. An AUTO/ON (HAND)/OFF jumper link is provided for commissioning or manual override purposes. The unit can be powered from 24Vdc or 24Vac. The RM1-AB is supplied in a DIN rail carrier suitable for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection.

Features

• 0-10V dc input at low current
• SPCO volt free relay output
• Buffered slave 0-10V dc output
• 24Vac/dc powered
• LED indication of relay status
• AUTO/ON (HAND)/OFF jumper link for commissioning
• High quality rising clamp terminals
• DIN rail carrier (TS35 DIN rail)

Specifications

• Supply voltage: 24Vac or dc (+/-15%)
• Supply current: 100 mA on 24Vac / 30mA on 24Vdc
• Input: maximum 0-10 volts dc at 0.3 mA
• Output: maximum 0-10 volts dc at 5 mA
• Switch On point: maximum Adjustable 0.1 to 10Vdc
• Switch Off point: Adjustable 0.1 to Switch On point
• Output switching: Single Pole Changeover - 230Vac at 12 amps (NO contact- Resistive load)
• Terminals: Rising clamp for 0.5-2.5mm2 cable
• LED indicator: ON when relay energised
• Ambient temperature range: 0°C to 50°C
• Dimensions: 34(W) x 83(H) x 47(D) mm
• Weight: (Maximum) 45 grams
• Country of origin: United Kingdom

Technical

RM1-AB Voltage to Relay converter board datasheet
