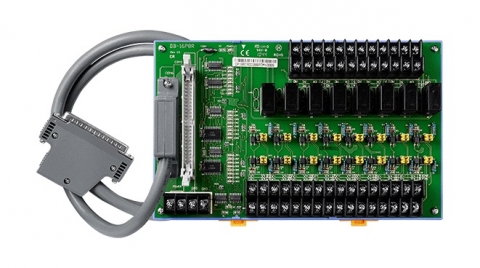

DB-16P8R/D/DIN 16-ch Isolated Input & 8-ch Relay Board With DIN-rail Mounting

£14600

(£175.20 incl VAT)
FREE delivery to UK on orders over £500

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:DB-16P8R/D/DIN

Description

The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U & PIO-D48U OPTO-22 Compatible digital I/O board

Features

16 Optically isolated digital input channels
8 Relay output channels
Connects directly to DIO24,DIO48,DIO144, PIO-D144U ,PIO-D96U , PIO-D48U OPTO-22 compatible digital input card or OPTO-22 compatible digital input board.
Dry contact or wet contact by jumper select Input range : High 5~24Vdc / Low 0~1.8Vdc

Technical

DB Series Daughter Board User Manual

Description

The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U & PIO-D48U OPTO-22 Compatible digital I/O board

Features

16 Optically isolated digital input channels
8 Relay output channels
Connects directly to DIO24,DIO48,DIO144, PIO-D144U ,PIO-D96U , PIO-D48U OPTO-22 compatible digital input card or OPTO-22 compatible digital input board.
Dry contact or wet contact by jumper select Input range : High 5~24Vdc / Low 0~1.8Vdc
