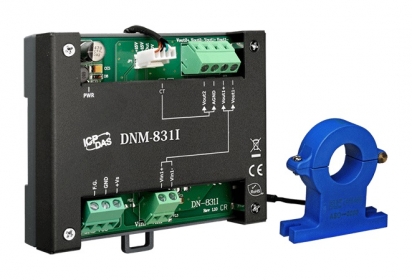

DNM-831I-100V-200A Voltage Attenuator And Current Transformer Series (AC/DC)

DNM-831I-100V-200A   Voltage Attenuator and Current Transformer series (AC/DC)
£15800

(£189.60 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:DNM-831I-100V-200A

Description

The DNM-800 series are a range of Voltage Attenuator and Current Transformer units designed for use in high-voltage applications.

The current can be converted into +/-10 Vpp attenuated signal, so that a general electronic measuring device is able to read the signals. Compared to the power meter products (PM-3033, PM-3133, PM-4324, etc.), in addition to AC signals, the DNM-800 series can convert DC signals as well.


The users can then use an appropriate Remote I/O Modules such as: M-7017R, I-87017RW, or ET-7217 to measure the converted +/-10 VDC signal via DNM-800 series. And use M-7017RMS or I-87017W-RMS, etc. to measure the AC signals.

By using DNM-800 series, the power data of all kinds of machines and AC/DC motors can be easily measured and retrieved, and then the analyzed data can be used to develop a model to build a failure warning system.

Features

  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • 3000 VDC Channel to Channel Isolation
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • RoHS Compliance
  • Easily wire connection
  • Operating Temperature: -25 ~ +75 °C

Specifications

EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range High Current: ±200 A
High Voltage: ±100 VDC
Accuracy High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation High Current: 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range • High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.8 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 93 x 29 (W x L x D)
Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Description

The DNM-800 series are a range of Voltage Attenuator and Current Transformer units designed for use in high-voltage applications.

The current can be converted into +/-10 Vpp attenuated signal, so that a general electronic measuring device is able to read the signals. Compared to the power meter products (PM-3033, PM-3133, PM-4324, etc.), in addition to AC signals, the DNM-800 series can convert DC signals as well.


The users can then use an appropriate Remote I/O Modules such as: M-7017R, I-87017RW, or ET-7217 to measure the converted +/-10 VDC signal via DNM-800 series. And use M-7017RMS or I-87017W-RMS, etc. to measure the AC signals.

By using DNM-800 series, the power data of all kinds of machines and AC/DC motors can be easily measured and retrieved, and then the analyzed data can be used to develop a model to build a failure warning system.

Features

Specifications

EMS Protection
ESD (IEC 61000-4-2) ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5) ±3 kV for power liner
CT
Type Clip
Inside Diameter Φ21 mm
Leading Cable 1.5 m
Analog Input
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range High Current: ±200 A
High Voltage: ±100 VDC
Accuracy High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation High Current: 2.5 KV @ 50 (60) HZ/1 min
Analog Output
Channels High Current: 1
High Voltage: 1
Type AC/DC Current
AC/DC Voltage
Range • High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.8 W
Mechanical
Casing Metal
Dimensions (mm) 103 x 93 x 29 (W x L x D)
Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

DNM-831 series Voltage Attenuator, Current Transformer for AC or DC Datasheet
