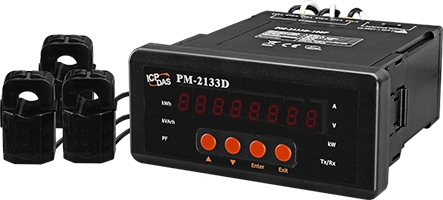

PM-2133D-160P 3-phase Compact Smart Energy Meter, LED Display, 100A CT's

PM-2133D-160P  3-phase Compact Smart Energy Meter, LED Display, 100A CT's
£34500

(£414.00 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:PM-2133D-160P

Description

The PM-2133D series is a range of powerful and advanced Smart Power Meters that give you access to real-time electric usage for three-phase power measurement.

With its high accuracy (<0.5%, PF=1 ), the PM-2133D series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. This meter has LED display shows power.

Features

  • True RMS Power Measurements
  • Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
  • Current Measurements Up to 400 A with Different CT Ratio
  • Voltage Measurements Up to 500 V
  • Clip-on CT for Easy Installation
  • W Accuracy Better than 0.5% (PF=1)
  • 8 - Digit LED Display
  • Supports Modbus RTU Protocol
  • Total Harmonic Distortion (THD)
  • Bi-directional Energy

Specifications

Model PM-2133D PM-2133D-MTCP
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Input Voltage 10 ~ 500 V
Input Current CTØ10 mm (0.05 A~60 A); CTØ16 mm (0.1 A~100 A); CTØ24 mm (0.15 A~200 A);
CTØ36 mm (0.3 A~300 A); CTØ36 mm (0.3 A~400 A).
Input Frequency 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz)
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz)
Data Update Rate 1 Second
Display Type LED display
Communication
RS-485 Protocol Modbus-RTU -
Baud rate 9600,19200 (default), 38400, 115200 -
Data format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 -
Isolation 3000 VDC -
Ethernet Protocol - Modbus TCP
Power
Input Range +85 ~ +264 VAC (277 VAC available))
Power Consumption 6 W
Environment
Operating Temperature -20 ~ +70 ˚C
Storage Temperature -25 ~ +80 ˚C
Ambient Relative Humidity 10% ~ 90% RH, Non-condensing



Description

The PM-2133D series is a range of powerful and advanced Smart Power Meters that give you access to real-time electric usage for three-phase power measurement.

With its high accuracy (<0.5%, PF=1 ), the PM-2133D series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. This meter has LED display shows power.

Features

Specifications

Model PM-2133D PM-2133D-MTCP
AC Power Measurement
Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Input Voltage 10 ~ 500 V
Input Current CTØ10 mm (0.05 A~60 A); CTØ16 mm (0.1 A~100 A); CTØ24 mm (0.15 A~200 A);
CTØ36 mm (0.3 A~300 A); CTØ36 mm (0.3 A~400 A).
Input Frequency 50 Hz (Range 45 ~ 55 Hz)/60 Hz (Range 55 ~ 65 Hz)
W Accuracy Better than 0.5% (PF=1)
Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency (45 ~ 65 Hz)
Data Update Rate 1 Second
Display Type LED display
Communication
RS-485 Protocol Modbus-RTU -
Baud rate 9600,19200 (default), 38400, 115200 -
Data format N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 -
Isolation 3000 VDC -
Ethernet Protocol - Modbus TCP
Power
Input Range +85 ~ +264 VAC (277 VAC available))
Power Consumption 6 W
Environment
Operating Temperature -20 ~ +70 ˚C
Storage Temperature -25 ~ +80 ˚C
Ambient Relative Humidity 10% ~ 90% RH, Non-condensing



Technical

PM-2133D 3-phase Smart Energy Meter with LED Display datasheet
