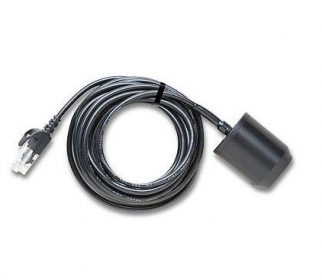

S-LIA-M003 Photosynthetic Light (PAR) Sensor With 3m Cable

Description

The Photosynthetic Light (PAR) Smart Sensor is intended to measure light intensity for the frequencies relevant for photosynthesis. This sensor has a measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm. Enclosed in a anodized aluminum housing with acrylic diffuser and o-ring seal, this model has a 3m cable; a light sensor bracket and light sensor level are recommended.

Features

• Measurement range of 0 to 2500 umol/m2/sec over wavelengths from 400 to 700 nm
• Plug-n-play smart sensor
• Compatible with RX, H21, H22, and U30 family loggers

Specifications

• Measurement parameters: average over logging interval, user-defined sampling interval from 1 second
• Measurement range: 0 to 2500 umol/m²/sec, wavelengths of 400 to 700 nm
• Operating temperature range: -40° to 75°C (-40° to 167°F)
• Accuracy: ±5 umol/m²/sec or ± 5%, whichever is greater in sunlight; additional temperature-induced error ±0.75 umol/m²/sec/degree C from 25°C. Cosine corrected 0 - 80 degrees, 360 degree rotation.
• Resolution: 2.5 umol/m²/sec
• Drift: <±2% per year
• Response time:


• Housing: anodized aluminum housing with acrylic diffuser and o-ring seal
• Dimensions: 4.1 cm height x 3.2.4 cm diameter (1 5/8" height x 1 1/4" diameter)
• Approximate weight: 120 g (4 oz)
• Cable length: 3 meter (10')
• Length of Smart Sensor Network Cable: 3m

Note: Light sensor bracket and light sensor level recommended
