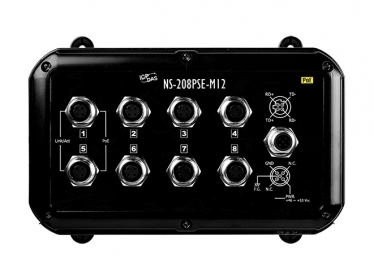

NS-208PSE-M12-IP67 8-port M12 Unmanaged PoE Ethernet Switch With IP67

£57100

(£685.20 incl VAT)
FREE delivery to UK on orders over £500

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:NS-208PSE-M12-IP67

Description

The NS-208PSE-M12-IP67 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

The NS-208PSE-M12-IP67 PoE switch provides 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provides up to 15.4 W of power per port. The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network.

Features

Each port supports both 10/100 Mbps speed auto negotiation
8 PoE ports with Power Sourcing Equipment (PSE) operation
Over-temperature, over-current and over/under-voltage detection
8-port 10/100 Mbps M12 type connector with IP67 protection
Full duplex IEEE 802.3x and half duplex backpressure flow control
Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture
Auto-detection of PD (powered devices) and automatic power management

Specifications

LED Indicators
Status	PWR, Link/Act, Power Device is detected

Ethernet
Ports	8 x M12 connector, 10/100Base-TX
Standards	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type	Store & forward
MAC Table	1024
Memory Bandwidth	3.2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Isolation	1500 Vrms 1 minute
Connector	Female 4-Pin shielded M12 D-coding connector

PoE Technology
PoE Compliance	100% IEEE 802.3af compliant
PoE Power	Up to 15.4 W per port
PoE Operation	Automatic detection and power management
PoE Pin Assignments	V+ (Pin 1, 2), V- (Pin 3, 6) for RJ-45
PoE Disconnect Mode	DC disconnect
PoE Voltage	+48 VDC depending on power input

Power
Reverse Polarity Protection	Yes
Input Range	+46 VDC ~ +53 VDC
Consumption	0.12 A @ 48 VDC without PD loading 3.0 A @ 48 VDC with PD full loading

Mechanical
Casing	Plastic
Dimensions (mm)	DIN-rail mounting: 190 x 112 x 62 (W x L x H) Wall mounting: 190 x 134 x 62 (W x L x H)
Installation	DIN-rail mounting or wall mounting
Ingress Protection Rating	IP67

Environment
Operating Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Humidity	100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C

Technical

NS-208PSE-M12-IP67 8-port M12, IP67 PoE Switch datasheet

Description

Features

Each port supports both 10/100 Mbps speed auto negotiation
8 PoE ports with Power Sourcing Equipment (PSE) operation
Over-temperature, over-current and over/under-voltage detection
8-port 10/100 Mbps M12 type connector with IP67 protection
Full duplex IEEE 802.3x and half duplex backpressure flow control
Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture
Auto-detection of PD (powered devices) and automatic power management

Specifications

LED Indicators
Status	PWR, Link/Act, Power Device is detected

Ethernet
Ports	8 x M12 connector, 10/100Base-TX
Standards	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type	Store & forward
MAC Table	1024
Memory Bandwidth	3.2 Gbps
Frame Buffer Memory	512 Kbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Isolation	1500 Vrms 1 minute
Connector	Female 4-Pin shielded M12 D-coding connector

PoE Technology
PoE Compliance	100% IEEE 802.3af compliant
PoE Power	Up to 15.4 W per port
PoE Operation	Automatic detection and power management
PoE Pin Assignments	V+ (Pin 1, 2), V- (Pin 3, 6) for RJ-45
PoE Disconnect Mode	DC disconnect
PoE Voltage	+48 VDC depending on power input

Power
Reverse Polarity Protection	Yes
Input Range	+46 VDC ~ +53 VDC
Consumption	0.12 A @ 48 VDC without PD loading 3.0 A @ 48 VDC with PD full loading

Mechanical
Casing	Plastic
Dimensions (mm)	DIN-rail mounting: 190 x 112 x 62 (W x L x H) Wall mounting: 190 x 134 x 62 (W x L x H)
Installation	DIN-rail mounting or wall mounting
Ingress Protection Rating	IP67

Environment
Operating Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
Humidity	100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C
