I-2534 Industrial 4-port CAN Bus Switch

I-2534 Industrial 4-port CAN Bus Switch
£22600

(£271.20 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:I-2534

Description

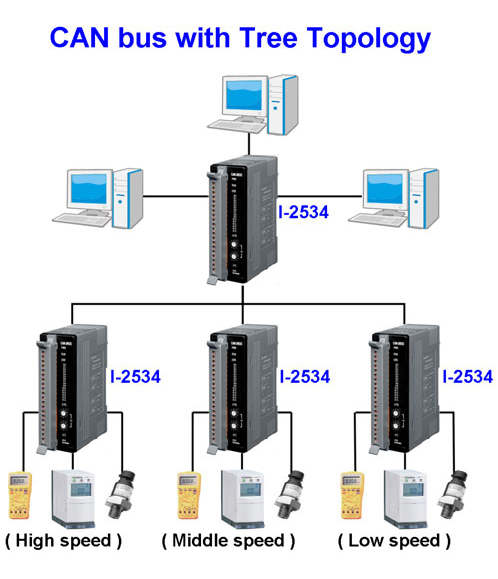

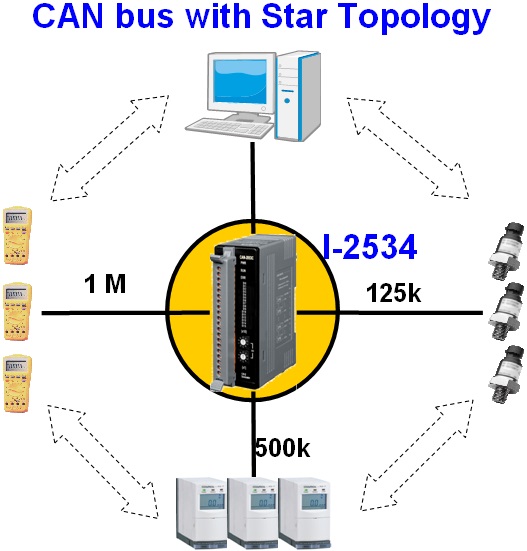

The I-2534 / I-5534-M is a CAN bus switch with four independent CAN channels, which offer a flexible design via a star or tree network topology. This topology can help fulfil a complex CAN bus application, like industrial machinery, building automation, vehicle automation etc. Furthermore the I-2534 / I-5534-M integrates and exchanges data between different CAN network which have different baud rates. It helps users to extend the CAN network system. The I-2534 / I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.



The I-2534 has a
Flame-Resistant plastic case, while the I-5534-M has an Aluminum case.

Features

  • 4 CAN communication ports
  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
  • CAN bus filter is configurable
  • 100 data frames buffer for each CAN channel
  • Max data flow up to 2500 fps for all CAN channel
  • Selectable baud rate by rotary switch
  • Selectable 120Ω terminator resistor by DIP switch
  • LED for CAN reception and transmission
  • Support CAN network with star or tree topology
  • Extending the CAN bus distance to expand the CAN network size
  • Integrating different CAN network with different baud rate
  • I-2534 is casing with Flame-Resistant plastic case
  • I-5534-M is casing with Aluminum metallic case

Specifications

Model Name I-2534 I-5534-M
Hardware
Controller
High Performance Microcontroller
RTC (Real Time Clock)
No
Watchdog
Watchdog IC
CAN Interface
Transceiver
NXP TJA1042
Channel number
4
CAN Connector 3-pin screwed terminal block with CAN_H, CAN_L, CAN_GND 9-pin male D-Sub with CAN_GND, CAN_SHLD, CAN_H, CAN_L
CAN Specification
ISO-11898-2, CAN 2.0A and CAN 2.0B
Baud Rate (bps)
5k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
Baud Rate Selection
Selectable by rotary switch
Isolation
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor
Selectable 120Ω terminator resistor by DIP switch
Selectable 120Ω terminator resistor by internal jump
Transmission Distance (m)
Depend on baud rate (for example, max. 1000 m at 50 kbps )
CAN Filter
Configurable by user
Propagation Delay
240 us ~ 1360 us *note1
UART Interface
RS-232
1 port (for configuration)
RS-232 Connector
3-pin screwed terminal block (TxD, RxD, GND )
9-pin screwed terminal block (TxD, RxD, GND )
LED
Round LED
CAN status LED x 4 , Power LED x 1
Power
Input range
Unregulated +10 ~ +30 VDC
Power Consumption
3W 1.5W
Mechanism
Installation
DIN-Rail Wall-Mounting
Casing
Flame-Resistant plastic case Aluminum metallic case
Dimensions
32.3 mm x 99 mm x 77.5 mm (W x L x H) 116.5 x 127 x 61.3 mm (W x L x H)
Environment
Operating Temp.
-25 ~ 75 ?
Storage Temp.
-30 ~ 80 ?
Humidity
10 ~ 90% RH, non-condensing
ESD protection 4 kV Contact for each channel
EFT protection 500V for signal, 1000V for power
EMI certification 30M ~ 1G pass
Hi-pot protection 1kV pass
Surge protection 500V pass 1kV pass

note1:
The propagation delay depends on the CAN Bus baud rate and the CAN message format.
The minimum delay is [ 11-bit ID and 8-byte data @ 1M bps ]
The maximum delay is [ 29-bit ID and 8-byte data @ 5k bps ]

Applications

  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition
