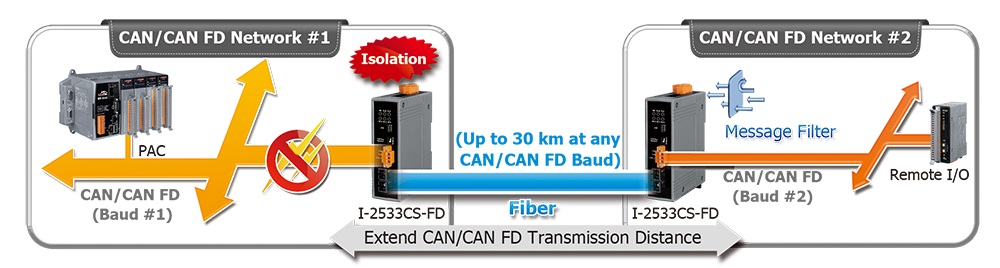

The I-2533CS-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus systems via single mode fibre optic transmission medium. In order to solve the problem between CAN/CAN FD and fibre transmission, the I-2533CS-FD is specially designed for converting the electrical CAN/CAN FD bus signal to fibre optic cables.
The I-2533CS-FD has three more important features.
1. Transmission distance limitation of the CAN bus system will not affected due to the different CAN/CAN FD baud rate. It means that the total CAN/CAN FD bus working distance can be extended.
2. Bus error on one CAN/CAN FD network will not affect the operation of another CAN/CAN FD network.
3. Two CAN/CAN FD network can communicate with each other by using different CAN/CAN FD baud rate for greater flexibility.
|
LED Indicators |
|
Status |
1 x Power, 3 x CAN status, 2 x Fiber status |
|
Fibre |
|
Fiber Cable |
8.3/125, 8.7/125, 9/125 or 10/125 μm |
|
Wavelength |
1310 nm |
|
TX Output |
-15 dBm Min. , -8 dBm Max. |
|
RX Sensitivity |
-34 dBm Max. |
|
RX Overload |
-5 dBm Max. |
|
Budget |
19 dBm |
|
Propagation Delay |
190 us (*Note1) |
|
Distance Between Stations |
30 km (9/125 μm recommended) |
|
USB |
|
Specification |
USB 2.0 High Speed (480Mbps) |
|
Connector |
USB Type B, Mini-B |
|
Driver |
Built-in Windows 7/8.1/10 |
|
CAN |
|
Ports |
1 |
|
Baud Rate |
CAN bit rates: 10 k ~ 1 M bps,
CAN FD bit rates for data field: 100 k ~ 10M bps (*Note2) |
|
Terminal Resistor |
Switch for 120Ω terminal resistor |
|
Specification |
ISO 11898-2, CAN 2.0 A/B and FD |
|
Filter |
Yes |
|
Power |
|
Input Range |
+10 VDC ~ +30 VDC |
|
Consumption |
3 W |
|
Mechanical |
|
Casing |
Plastic |
|
Dimensions (mm) |
33 x 127 x 101 (W x L x H) |
|
Installation |
DIN-Rail |
|
Environment |
|
Operating Temperature |
-25 ~ +75 °C |
|
Storage Temperature |
-30 ~ +80 °C |
|
Humidity |
10 ~ 90% RH, Non-condensing |
Specification Memo
Note1: The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.
Note2: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
