WISE-2841M Advanced Intelligent IIoT Edge Controller (Metal Case)

WISE-2841M Advanced Intelligent IIoT Edge Controller (Metal Case)
£1,38100

(£1,657.20 incl VAT)
FREE delivery to UK on orders over £500

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:WISE-2841M

Description

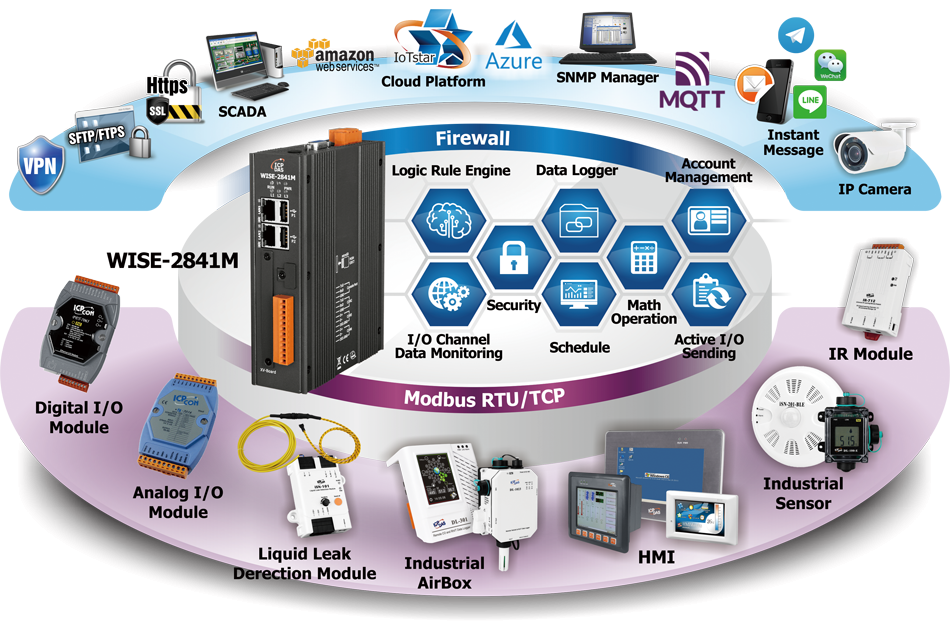

The Advanced IIoT Edge Controller - WISE-2841M inherits the features of the original WISE series controllers: perform system setting and monitoring by browser, powerful IF-THEN-ELSE logic operation capability, connection ability to a variety of I/O modules, support data computing and real-time message notification functions.

In order to meet the requirement of high level information security protection of the IoT(Internet of Things) system, WISE-2841M provides a variety of encrypted communication protocols as below. With the HTTPS protocol supported by WISE-2841M, users can securely access the WISE web page without worrying about the setting being stolen. Through the SNMP v3 protocol, WISE-2841M can be perfectly integrated with the IT and Network management system. Users can securely download data log files stored from WISE through SFTP and FTPS protocols. WISE-2841M supports the setting of blacklist and whitelist, which allows users to filter and block the specific domains. With the equipped VPN function, WISE-2841M can connect to devices in a specific secure network domain to completely isolated from the threats of information security outside. In the integration with Cloud Platform, WISE-2841M can connect to the IoT services of Amazon Web Services, Microsoft Azure and IBM Bluemix cloud platforms. It also can integrate with the IoTstar Cloud Management software provided by ICP DAS. Based on the powerful integration capabilities with IT/IoT network environment, it makes WISE-2841M series modules as the best IIoT Edge controller in the IoT Age.


Features

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Support XV-board.
  • Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
  • Support Modbus TCP Slave modules (Up to 16).
  • Timer and Schedule functions supported.
  • Data logger and data files send back function supported.
  • Active I/O sending function for real-time data transfer.
  • CGI Command sending and receiving function supported for IP Camera and Network device.
  • Support Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3 protocols.
  • Support HTTPS, SFTP, FTPS encrypted communication protocols.
  • Support VPN function.
  • Support Line, Telegram, WeChat and Email real-time message sending.
  • Support Connection with IoT Cloud Platform (Amazon Web Services, Microsoft Azure and IBM Bluemix).
  • Support IoTstar Cloud Management Software.

Specifications

Software
Protocol • Modbus TCP & Modbus RTU
• FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption)
• SNMP v2c/v3 & SNMP Trap
• MQTT Client (Message Publish & Subscribe; Support SSL/TLS)
• CGI Command (Sending & Receiving)
• Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap)
• DDNS
• VPN
Function • Web Interface for Configuration (Support HTTPS)
• IF-THEN-ELSE Logic operation (Unlimited rule supported)
• I/O channel monitoring and control
• Timer operation (Unlimited set supported)
• Schedule operation (More Powerful; Unlimited set supported)
• Data Logger operation (Unlimited set supported)
• Internal Register operation (100 set supported)
• Recipe operation (Unlimited set supported)
• Instant message sending function (LINE Notify, WeChat)
• non-SSL & SSL Email sending function
• SNTP Time Synchronization
IoT Service Integration • ICP DAS IoTstar IoT Cloud Management Software
• Amazon Web Services IoT Cloud platform
• Microsoft Azure IoT Cloud platform
• IBM Bluemix IoT Cloud platform
CPU Module
CPU Quad-core ARM CPU, 1.6 GHz/Core
Storage Expansion Built-in one 4 GB microSD card (support up to 2 TB microSDXC card)
LED Indicators
Status 1 x Power
1 x Running
I/O Expansion
I/O Type XV-board
Remote Module Support I-7000/M-7000/tM/DL/LC/IR/iSN Series Module
WISE-7100/(P)ET-7000/WF-2000 Series Module
Modbus RTU Slave Module
Modbus TCP Slave Module
IP Camera iCAM Series Module
Ethernet
Ports RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
COM Ports
Ports COM 1: Reserved
COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max.
COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.
COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.
Power
Input Range 12 ~ 48 VDC
Consumption 4.8W
Mechanical
Dimensions (mm) 42 × 164 × 129 (W x L x H)
Installation Wall Mounting / DIN-Rail Installation; Optional
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

WISE-2841M Advanced IIoT EDGE Controller datasheet

WISE Controller model comparison

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

Description

The Advanced IIoT Edge Controller - WISE-2841M inherits the features of the original WISE series controllers: perform system setting and monitoring by browser, powerful IF-THEN-ELSE logic operation capability, connection ability to a variety of I/O modules, support data computing and real-time message notification functions.

In order to meet the requirement of high level information security protection of the IoT(Internet of Things) system, WISE-2841M provides a variety of encrypted communication protocols as below. With the HTTPS protocol supported by WISE-2841M, users can securely access the WISE web page without worrying about the setting being stolen. Through the SNMP v3 protocol, WISE-2841M can be perfectly integrated with the IT and Network management system. Users can securely download data log files stored from WISE through SFTP and FTPS protocols. WISE-2841M supports the setting of blacklist and whitelist, which allows users to filter and block the specific domains. With the equipped VPN function, WISE-2841M can connect to devices in a specific secure network domain to completely isolated from the threats of information security outside. In the integration with Cloud Platform, WISE-2841M can connect to the IoT services of Amazon Web Services, Microsoft Azure and IBM Bluemix cloud platforms. It also can integrate with the IoTstar Cloud Management software provided by ICP DAS. Based on the powerful integration capabilities with IT/IoT network environment, it makes WISE-2841M series modules as the best IIoT Edge controller in the IoT Age.


Features

Specifications

Software
Protocol • Modbus TCP & Modbus RTU
• FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption)
• SNMP v2c/v3 & SNMP Trap
• MQTT Client (Message Publish & Subscribe; Support SSL/TLS)
• CGI Command (Sending & Receiving)
• Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap)
• DDNS
• VPN
Function • Web Interface for Configuration (Support HTTPS)
• IF-THEN-ELSE Logic operation (Unlimited rule supported)
• I/O channel monitoring and control
• Timer operation (Unlimited set supported)
• Schedule operation (More Powerful; Unlimited set supported)
• Data Logger operation (Unlimited set supported)
• Internal Register operation (100 set supported)
• Recipe operation (Unlimited set supported)
• Instant message sending function (LINE Notify, WeChat)
• non-SSL & SSL Email sending function
• SNTP Time Synchronization
IoT Service Integration • ICP DAS IoTstar IoT Cloud Management Software
• Amazon Web Services IoT Cloud platform
• Microsoft Azure IoT Cloud platform
• IBM Bluemix IoT Cloud platform
CPU Module
CPU Quad-core ARM CPU, 1.6 GHz/Core
Storage Expansion Built-in one 4 GB microSD card (support up to 2 TB microSDXC card)
LED Indicators
Status 1 x Power
1 x Running
I/O Expansion
I/O Type XV-board
Remote Module Support I-7000/M-7000/tM/DL/LC/IR/iSN Series Module
WISE-7100/(P)ET-7000/WF-2000 Series Module
Modbus RTU Slave Module
Modbus TCP Slave Module
IP Camera iCAM Series Module
Ethernet
Ports RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
COM Ports
Ports COM 1: Reserved
COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max.
COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.
COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max.
Power
Input Range 12 ~ 48 VDC
Consumption 4.8W
Mechanical
Dimensions (mm) 42 × 164 × 129 (W x L x H)
Installation Wall Mounting / DIN-Rail Installation; Optional
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing



Technical

WISE-2841M Advanced IIoT EDGE Controller datasheet

WISE Controller model comparison

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
