Integrate your serial RS-232/422/485 based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished.

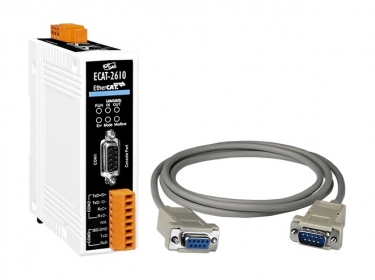

The ECAT-2610 Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Protocol | Modbus RTU (Master) |
| EtherCAT | |
|---|---|
| Ports |
RJ-45 x 2 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 10 ms |
| Distributed Clocks | N/A |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 99 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
