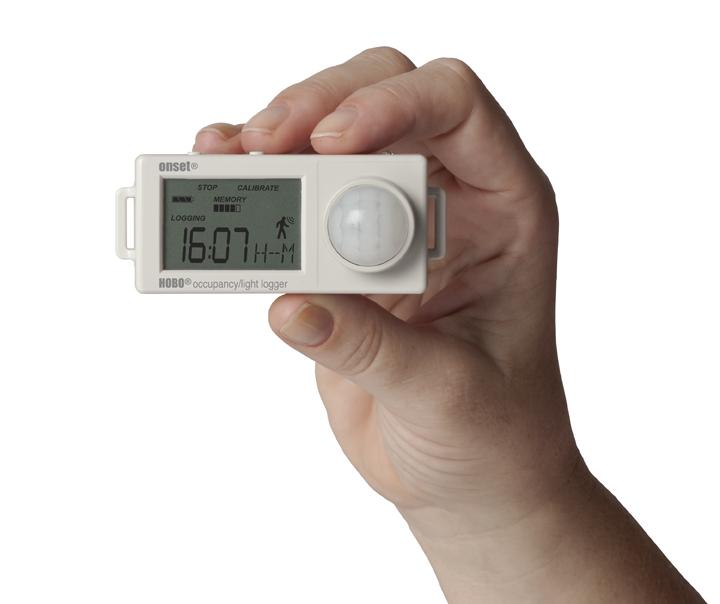

HOBO® UX90-006 Room Occupancy (12m)/Light Data Logger

Description

The HOBO Occupancy & Light data logger monitors room occupancy up to 12m away plus indoor light changes, to identify occupancy patterns and determine energy usage, possibly highlighting potential savings.

The HOBO UX90-006 Room Occupancy/Light Logger is available is capable of recording 84,650 measurements, while an expanded memory version (UX90-006M) is capable of recording over 346,795 measurements.

IMPORTANT: Hoboware software is now available as a free download that will suffice for most applications. The PRO Version is available for extra analysis tools and use with a Data Shuttle. For the differences between the FREE and PRO versions, please refer to the BHW-Lite (Hoboware Free DVD & USB Cable) entry in the Recommended Products section (below). The download link is also available on the BHW-LITE Page.

Features

• Measures room occupancy up to 12 meters away
• Auto-calibration of ON and OFF thresholds ensures reliable readings
• LCD screen displays signal strength, enabling proper logger placement
• Optional light pipe eliminates effects of ambient sunlight or other
  lighting sources

Specifications

Occupancy Sensor

• Detection Range: UX90-005x: maximum 5 m (16.4 ft)
• Detection Performance:
  UX90-005x: 94° (±47°) Horizontal; 82° (±41°) Vertical (see Figure A)
  UX90-006x: 102° (±51°) Horizontal; 92° (±46°) Vertical (see Figure B)
• Detection Zones:
  UX90-005x: 64 (see Figure A)
  UX90-006x: 92 (see Figure B)

Light Sensor

• Light Threshold: > 65 lux
• Light Type: LED, CFL, fluorescent, HID, incandescent, natural

Logger

• Time Accuracy: ±1 minute per month at 25°C (77°F) (see Plot A)

• Battery Life: 1 year typical use (CR2032 fitted - user replaceable)
• Memory:
  UX90-005/-006: 128 KB (84,650 measurements, maximum)
  UX90-005M/-006M: 512 KB (346,795 measurements, maximum)
• Download Type: USB 2.0 interface
• Download Time: 10 seconds for 128 KB; 30 seconds for 512 KB
• Logger Operating Range:
  Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
  Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
• Occupancy Sensor Range: 20° to 60°C (-4° to 140°F); 15 to 85% RH (non-condensing)
• LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
• Size:
  UX90-005x: 3.66 x 8.48 x 2.36 cm (1.44 x 3.34 x 0.93 in.)
  UX90-006x: 3.66 x 8.48 x 2.87 cm (1.44 x 3.34 x 1.13 in.)
• Weight: 30 g (1.06 oz)
• Environmental Rating: IP50

Technical

UX90 Series time of use Loggers Datasheet

UX90-006 Occupancy/Light on-off Data Logger datasheet

Applications

Monitoring Occupancy Patterns

Monitoring Light Usage

Energy Saving evaluations

Facilities Management
