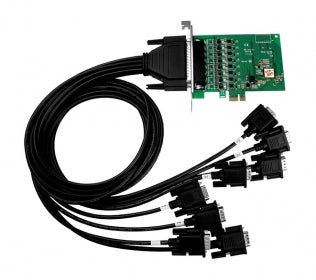

PCIe-S148/D2 PCI Express, Serial Communication Board with 8 RS-422/485 ports

£236.00; £236.00; (-0%)
Unit price: per

(Price excludes VAT)

PCI Express, Serial Communication Board with 8 RS-422/485 ports (RoHS) Includes one CA-9-6210 cable

Model: PCIe-S148/D2

Quantity:

Subtotal: £236.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee

UK company

40 years experience

Talk to our expert engineers

PCIe-S148/D2 PCI Express, Serial Communication Board with 8 RS-422/485 ports

£236.00

Quantity:

PCIe-S148/D2 PCI Express, Serial Communication Board with 8 RS-422/485 ports

£236.00

Description
Features
Specifications
Technical
Applications

Description

The PCIe-S148 card provides 8 RS-422/485 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 921600 bps and supports full-duplex communication. The PCIe-S148 card support drivers choose an available COM port number automatically.

The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-422/485 port.

Features

Supports PCI Express x1
Provides 8 RS-422/485 ports
Automatically select an available COM port number
Supports COM port number selection under software control
256-byte Hardware FIFO for Each Port
Short Card Design
RoHS compliant & No Halogen

Specifications

Hardware
Connector	Female DB-62

COM Ports
Ports	8 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, GND / RS-485: Data+, Data-, GND)
Baud Rate	2400 - 921600 bps
Parity	None, Even, Odd, Mark, Space
Data Bit	5, 6, 7, 8
Stop Bit	1, 1.5, 2
FIFO Size	Internal 256 bytes

Power
Consumption	120 mA @ 5 V

Mechanical
Dimensions (mm)	93.1 x 115.7 x 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Technical

PCIe-S148/D2 PCI Express Serial card 8x RS422/RS485 ports datasheet
