Understanding energy usage is becoming increasingly important, as a method of improving efficiency and thus costs!
By utilising the latest PM-213x Series power meters (versions available for Single and Three phase Metering), all of the Energy Data can be transmitted on a multi-drop RS485 network using the ModbusRTU protocol to a monitoring package, such as our Orchestrator software . Each Power Meter comes in a small DIN-Rail mounting case and is supplied with small clip-on CT, to monitor circuits up to 200A.
 |
Power Measurements available are: True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF)
COMING SOON: PM-311x series Single-Phase Power meters with Modbus RTU, ModbusTCP or CAN interfaces. |

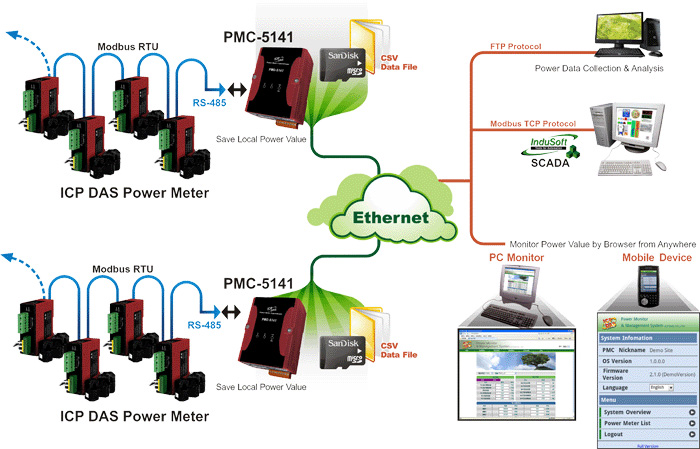

Alternatively, the PMC-5141 Power Concentrator can be used to record the data from up to 16 PM-213x or Pm-311x Power Meters. The PMC-5141 uses an integrated Web Server to manage the Meters and display the stored data.
It also offers:
|
 |
More information on our Energy Monitoring Solutions can be found here.
To discuss how these products can help with your Energy Monitoring Requirements, please contact us.
