InstruNet High Speed Systems
Measurement Systems can now offer the

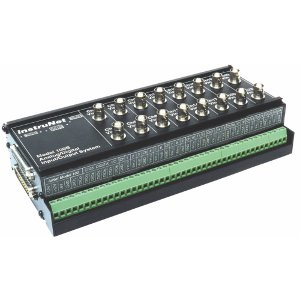

Instrunet Range of Distributed Data Acquisition devices.
These units are ideal for applications where a fast rate of measurement is required (upto 166ks/sec), without jeopardising accuracy.
Each Instrunet unit offers 8 Differential or 16 Single-ended 14-bit Analog Inputs, 8 Analog Outputs (8-bit) and 8 Digital I/O bits. All the inputs are individually configurable for a host of sensor inputs including Thermocouples, RTD's, Strain Gauges, Resistance, Current and Voltage sources.
Upto 8 Instrunet Devices can be connected to one network over a total distance of 300m. Each network is controlled from a PCI or PCMCIA controller card, while the PCI card also has some Counter/Timer inputs available.
Software wise, instrunet:
-
Includes FREE Strip Chart/Oscilloscope/XY Recorder/Spectrum Analyzer Software.
-
Includes FREE Interfaces for Microsoft Visual BASIC .Net ≥ 7.
-
Includes FREE Interfaces for DasyLab Application Software. Low cost LabVIEW interfaces are available from a 3rd party.
Also available is a driver for our Orchestrator SCADA software .
