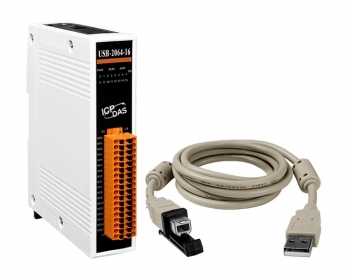

The USB-2064-16 is a full-speed USB I/O device with 16-ch power relay output module, and provides a power rated relay with 3A maximum current contact rating for switching. In addition, the USB-2064-16 also offers 8 LED indicators that can be used to monitor the status of the relay output. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.
Also provided is an API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2064-16 is the perfect choice for you to implement I/O expansion via a plug-and-play USB interface.
| CPU Module | |
|---|---|
| Watchdog Timer |
1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
±8 kV contact for each terminal ±16 kV air for random point |
| LED Indicators | |
|---|---|
| Status |
3 x Power and Communication 16 x Power Relay |
| Relay Output | |
|---|---|
| Channels | 16 Form A (SPST-NO) |
| Contact Rating |
3 A @ 250 VAC (47 ~ 63 Hz) 3 A @ 30 VDC |
| Operate Time | 10 ms (Max.) |
| Release Time | 5 ms (Max.) |
| Electrical Endurance | 1 x 10^5 ops |
| Mechanical Endurance | 2 x 10^7 ops |
| Surge Strength |
Between Open Contact: 1000 VAC (1 Min.) Between Coil and Contacts: 3000 VAC (1 Min.) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
|---|---|
| Consumption | 2.3 W (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 147 x 126 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
