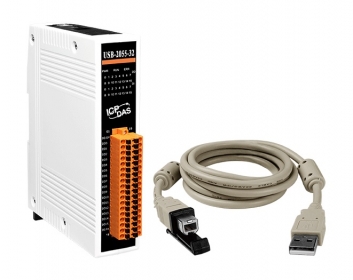

The USB-2055-32 is a full-speed USB device with 16 digital input and 16 digital output channels for industrial control and manufacturing test applications, such as factory automation or embedded machine control.
The USB-2055-32 offers 16 isolated channels for digital input and 16 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 32-bit counters. The USB-2055-32 supports source-type output with short circuit protection. There are options to enable both power-on and safety values. The USB-2055-32 has 32 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.
With the true Plug & Play capability, it doesn't need any opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2055-32. The USB I/O utility can help users to configure and test USB-2055-32 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB / C++ / C#.NET / VB.NET). Therefore, the USB-2055 is the perfect way to add control capability to any USB capable computer.
| CPU Module | |
|---|---|
| Watchdog Timer |
1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status |
3 x Power and Communication 32 x Digital Input and Output |
| Digital Input/Counter | |
|---|---|
| Channels | 16 |
| Type |
Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level |
Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 4294967295 (32-bit) |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Effective Distance | 500 meters Max. |
| Input Impedance | 10 KΩ |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector, Sink (NPN) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 600 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
|---|---|
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 147 x 126 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
