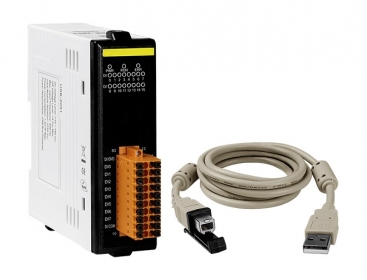

USB-2051 USB I/O Module With Isolated 16-ch DI

USB-2051 USB I/O Module with Isolated 16-ch DI
£8400

(£100.80 incl VAT)
FREE delivery to UK on orders over £100

100% Money Back
30 Day Guarantee

International Shipping
Over 100 Countries

Model:USB-2051

Description

The USB-2051 is a full-speed USB device with 16 digital input channels. providing features for industrial control and manufacturing test applications, such as factory automation or embedded machine control.

The USB-2051 offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters.
All channels not only feature photocouple isolation, but can also be used as 16-bit counters. The USB-2051 has 16 LED indicators that can be used to monitor the status of the digital input channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.

With the true Plug & Play capability, ans support for "hot-swapping", where users do not even need to shut down and restart the system to attach or remove the USB-2051. The USB I/O utility can help users to configure and test USB-2051 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop their own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2051 is the perfect way to add control capability to any USB capable computer.

Features

  • 16-channel sink type digital input
  • Dry Contact and Wet Contact Selectable via Wire Connections
  • All Channels can be used as 16-bit Counters
  • 2500 VDC Intra-Module isolation
  • USB 1.1/2.0 Full-Speed (12Mbps)
  • No external power supply (USB Bus Powered)
  • Plug-and-Play without driver
  • Lockable USB cable
  • Support firmware update via USB
  • Utility tool for module configuration and I/O testing easily and quickly
  • PWR/RUN/ERR LED indicators
  • Built-in dual watchdog (hardware/software)
  • Provide API library (VC/VB/BCB/.NET)
  • Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)

Specifications

CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
LED Indicators
Status 3 x Power and Communication
16 x Digital Input
Digital Input/Counter
Channels 16
Type Dry Contact, Source
Wet Contact, Sink/Source
Wet Contact, ON Voltage Level +10 VDC ~ +50 VDC
Wet Contact, OFF Voltage Level +4 VDC Max.
Dry Contact, ON Voltage Level Close to GND
Dry Contact, OFF Voltage Level Open
Dry Contact, Effective Distance 500 meters Max.
Max. Counts 65535 (16-bit)
Frequency 500 Hz
Min. Pulse Width 1 ms
Input Impedance 10 KΩ
Overvoltage Protection 70 VDC
USB
Specification USB 2.0 Full-Speed (12Mbps)
Power
Consumption 1.2 W
Mechanical
Dimensions (mm) 33 x 110 x 96 (W x L x H)
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing



Description

The USB-2051 is a full-speed USB device with 16 digital input channels. providing features for industrial control and manufacturing test applications, such as factory automation or embedded machine control.

The USB-2051 offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters.
All channels not only feature photocouple isolation, but can also be used as 16-bit counters. The USB-2051 has 16 LED indicators that can be used to monitor the status of the digital input channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.

With the true Plug & Play capability, ans support for "hot-swapping", where users do not even need to shut down and restart the system to attach or remove the USB-2051. The USB I/O utility can help users to configure and test USB-2051 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop their own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2051 is the perfect way to add control capability to any USB capable computer.

Features

Specifications

CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
LED Indicators
Status 3 x Power and Communication
16 x Digital Input
Digital Input/Counter
Channels 16
Type Dry Contact, Source
Wet Contact, Sink/Source
Wet Contact, ON Voltage Level +10 VDC ~ +50 VDC
Wet Contact, OFF Voltage Level +4 VDC Max.
Dry Contact, ON Voltage Level Close to GND
Dry Contact, OFF Voltage Level Open
Dry Contact, Effective Distance 500 meters Max.
Max. Counts 65535 (16-bit)
Frequency 500 Hz
Min. Pulse Width 1 ms
Input Impedance 10 KΩ
Overvoltage Protection 70 VDC
USB
Specification USB 2.0 Full-Speed (12Mbps)
Power
Consumption 1.2 W
Mechanical
Dimensions (mm) 33 x 110 x 96 (W x L x H)
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing



Technical

USB-2051 USB Based Isolated 16-channel Digital input unit datasheet
