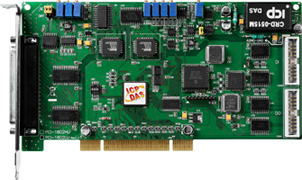

Universal PCI Multi-function card, 32 channel (single-ended or 16 differential), 12-bit Low Gain card for up to 44ks/s total sampling rate. 16 Digital Input  & 16 Digital Output channels. 2 programmable Analog Outputs. 8k FIFO buffer. Internal/external trigger.
Model: PCI-1802HU
Subtotal: £597.00

Free Shipping Free standard shipping on orders over £500

Free Returns 30 Day Money Back Guarantee
icon

UK company

icon

40 years experience

icon

Talk to our expert engineers

PCI-1802HU 32Ch.AI, 12-bit 44ks/s, 2AO, Dig I/O High Gain Board

PCI-1802HU 32Ch.AI, 12-bit 44ks/s, 2AO, Dig I/O High Gain Board

£597.00
PCI-1802HU 32Ch.AI, 12-bit 44ks/s, 2AO, Dig I/O High Gain Board

PCI-1802HU 32Ch.AI, 12-bit 44ks/s, 2AO, Dig I/O High Gain Board

£597.00
Description

The PCI-1800 series is a family of high performance data acquisition board for PC with PCI bus. It features a continuous, 330KHz for low gain (44KHz for high gain), gap-free data acquisition under DOS and Windows. The PCI-1800 family has the same architecture and has, two 12-bit D/A output channel, 16 digital input channels,16 digital output channels. The PCI-1802HU, PCI-1802LU provide 32 single-ended or 16 differential inputs. The -H means high gain model and the -L means low gain model.

The scan function of PCI-1800 is called "Magic Scan". The variable channel scan function is found in some famous data acquisition board. Compared to Variable channel scan, the Magic Scan improves many functions to meet the demand of the high end user. The Magic Scan  mechanism not only scans the different input channels at vastly different rates, but also at different gains. Even in multi-channel scan, the sampling rates can maintain at 330KS/s.

The board is equipped with 8K samples hardware FIFO which reduces data overflow issues.

Includes one CA-4002 D-Sub connector.



Features

Features

  • Universal PCI interface supports both 5 V and 3.3 V PCI bus.
  • Pull-high/ pull-low resistors for DI channels.
  • 12-bit 330KHz A/D converter
  • PCI-1802HU,PCI-1802LU -32 single-ended/ 16 differential inputs, 8K word FIFO buffer
  • The sampling rates of single channel or multiple channels is 330K samples/s for low gain model and 44K samples/s for high gain model.
  • Three different external trigger : post-trigger, pre-trigger, middle trigger
  • 16 digital input / 16 digital output channels
  • 1802LU : programmable low gain: 0.5, 1, 2, 4, 8.
  • 1802HU : programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
  • Internal / external trigger.
  • Two 12-bit independent programmable DAC.; 2 MHz throughput per channel (maxi)
  • 2.7 M word /high speed data transfer rate.
  • PCI-1802HU,PCI-1802LU can expand Channel by using DB-889D and DB-1825
  • Half size board

Software

  • DOS Lib and TC/BC/MSC sample program (source codes included)
  • DLL and OCX SDK for Windows 98/NT/2000.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.
Specifications

Analog Input Specifications

  • Input channel: 32 Single Ended or 16 Differential
  • Resolution : 12-bit
  • ADC Conversion Rate/Sampling rate : 44ks/s
  • Input Impedance : 10Mohm/6pF
  • Over voltage protection : +/- 35V
  • Accuracy : 0.01% of reading, +/- 1 bit
  • On chip sample and hold : Yes
  • On board FIFO : 8K.

PCI-1800HU, PCI-1802HU Input Range & Bipolar Unipolar Throughout

Gain
0.5
1
5
10
50
100
500
1000
Bipolar(V)
+/-10
+/-5
+/-1
+/-0.5
+/-0.1
+/-.05
+/-.01
+/-.005
Unipolar(V)

0~10

0~1

0~0.1

0~0.01
Sampling rate
44KS/s
44KS/s
44KS/s
44KS/s
10KS/s
10KS/s
1KS/s
1KS/s



    Analog Output Specifications

    • Channels : 2
    • Type : 12-bit Double Buffers
    • Linearity : 0.06% FS
    • Settling time : 0.4µs
    • Output Range : -5V ~ +5V or -10V~+10V
    • Output Driving : +/-5mA

    Digital I/O

    • Input : 16-channel TTL levels
      Low : VIL = 0.8V max., IIL = -0.4mA max
      High : VIH = 2V min., IIH = 20µA max
    • Output : 16-channel TTL levels
      Low : VOL = 0.5V max., IOL = 8mA max
      High : VOH = 2.7V min., IOH = 0.4mA max

    Timer

    • Three 16-bit independent timers, 8Mhz input clock
    • Internal Pacer timer
    • External Pacer timer
    • Machine independent timer

    General

    • I/O Connector : 1x 37-pin D-sub female + 2x 20-pin ribbon male
    • Power Requirements : +5V@350mA(Max.)
    • Operating temperature : 0~50°C
    • Storage temperature : -20~70°C
    • Humidity : 0~90% RH, non-condensing
    • Dimensions : 200mm x 105mm





    Technical

    Datasheet

    Applications
    • High speed data acquisition system
    • Process monitor and control.
    • Vibration analysis.
